The rotary encoder was behaving a little flaky. After doing some research I found that this is a common complaint. All mechanical encoders do have noise in their transitions. Since I was using an interrupt routine to detect motion and direction, I was experiencing multiple interrupts within one transition. After some experimentation, I figured I was sometimes getting 3 interrupts within one transition, so that the volume was increased, decreased and increased resulting in no change.
One solution was to write "debouncing" software to ignore spurious transitions. However the software solutions and code examples I found were a little too complicated to my liking and understanding. Adding simple delays in the software in the hope of ignoring the spurious transitions did not solve the problem, and in fact adding too much delay in the hope of masking the spurious interrupts caused the rotary encoder to be somewhat irresponsive.
After some research in the web, I decided then to add capacitors between the A, B terminals and Gnd. At first adding .1 uF did not seem to solve the problem, but it appeared that there was some small improvements. But adding an additional .01 uF solved the problem. I can't explain why adding a smaller value capacitor would solve the problem, since it is expected that larger values are better at smoothing the transitions. But it worked.

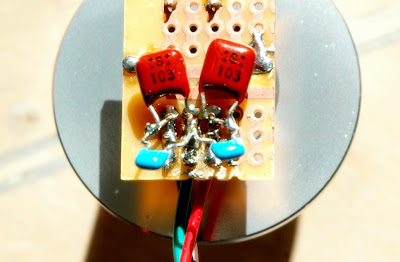

The 103 capacitors are .01 uF. The blue capacitors are 104 (.1 uF). They are installed between terminals A-GND and B-GND.
One solution was to write "debouncing" software to ignore spurious transitions. However the software solutions and code examples I found were a little too complicated to my liking and understanding. Adding simple delays in the software in the hope of ignoring the spurious transitions did not solve the problem, and in fact adding too much delay in the hope of masking the spurious interrupts caused the rotary encoder to be somewhat irresponsive.
After some research in the web, I decided then to add capacitors between the A, B terminals and Gnd. At first adding .1 uF did not seem to solve the problem, but it appeared that there was some small improvements. But adding an additional .01 uF solved the problem. I can't explain why adding a smaller value capacitor would solve the problem, since it is expected that larger values are better at smoothing the transitions. But it worked.
The 103 capacitors are .01 uF. The blue capacitors are 104 (.1 uF). They are installed between terminals A-GND and B-GND.
